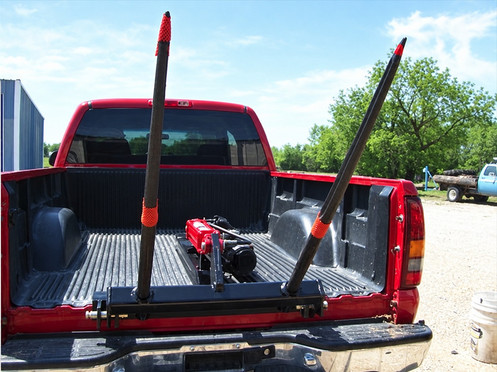

STRAIGHT NECK 12V HYDRAULIC TRUCK UNIT WITH SPEARS

Washburn Company

(1 review) Write a Review
$2,050.00
Shipping:
Calculated at Checkout
Adding to cart… The item has been added

Product Overview

STRAIGHT NECK 12V HYDRAULIC TRUCK UNIT WITH SPEARS

  • Pickup truck hay mover fork unit with 12 volt  Dalton hydraulic pump.
  • Features two easily removable 39" or 48" long forged heat treated tapered hay spears or forks which are 1 5/8 inch diameter. The bale spears are tested at higher weights like 3000# to 30" load center.
  • This hay stacker unit is shipped with the 48" hay spears unless you call us and specify the 39" spears.
  • Call us to select the best hay spike length to fit your hay bale size and density.
  • This truck mounted 12v electric hydraulic hay mover works well with the 4x4, 4x5, 4x6 bales with either the 48 or 39 inch bale spears, and 5x5, 5x6, 6x5 and 6x6 round bales work better with the 48" hay prongs.
  • 39" spears work better with very high density centered 4 and 5 foot wide hay bales
  • This is also called pickup hydraulic hay bale mover, pickup bale spear, pickup bale spike pickup bale stabber, pickup hay bale spear, pickup truck hay bale mover.
  • The hitch that fits over the ball telescopes and is adjustable front to back to fit your truck and is used where the gooseneck ball is above the bed surface.
  • Two bolts secure the unit over the ball and removes easily. Coupler is for 2 5/16 trailer hitch ball. Attaches to the ball in the bed of your truck. (ball not included).
  • The low profile of our pickup truck hydraulic hay mover allows attachment to a goose neck trailer without removing the hay mover, just remove the 2 ball coupler bolts and the telescoping bolt, raise the front up high enough to clear the ball then either remove the coupling tube or retract it back into the main frame.
  • Comes with remote control with up and down switch with about 12' of cord to operate unit from the cab of your truck or other desired location.
  • This pickup hay bale mover carrier fork unit comes with two 4 gauge battery cables 20' long of red cable with 4' black cable end lugs for easily attaching to truck battery, one for the positive and one for the negative battery terminals.
  • It is recommended that both are used to help insure trouble free operation.
  • Includes pump cover to help keep the pump dry.
  • Includes 300 amp fuse kit
  • These are the best spears available for the cost. Guaranteed for 1 year for use in hay bales only.
  • The 2 bale spears help to keep the hay bales from turning up side down allowing lower bale penetration.

Made in USA

SHIPPING

  • Ships by truck to many locations, for the cheapest freight enter a business name and address at check out.
  • Enter business address BEFORE check out for a LTL quote.
  • Residential deliveries are $55+ higher.
  • If you require assistance unloading the skid, you will incur an additional $75 lift gate fee
  • A family owned business since 1976 for over 40 years.
  • Thanks for your interest in our products.
  • This unit can also be picked up at our facility located at Washburn Farm & Home Supply at 172 NE 1St LN, Lamar, Mo 64759.
  • We are located on the outer road on the east side of 71 highway (I49) about 2 miles north of US 160. Stop by and see us.
  • We Ship to the US48. Hawaii, Alaska, and Canada are also available for additional fees.

CONTACT INFORMATION

  • A family owned business since 1976 our 40th year.
  • Thanks for your interest in our products.
  • This unit can also be picked up at our facility located at Washburn Farm & Home Supply at 172 NE 1St LN, Lamar, Mo 64759.
  • We are located on the outer road on the east side of 71 highway (I49) about 2 miles north of US 160. Stop by and see us.
  • We Ship to the US48. Hawaii, Alaska, and Canada are also available for additional fees.
  • We are open Monday-Friday from 8:00 am - 5:00pm, Central time. After hour I can be reached on my cell 417 682 1532 Till 8pm Central
  • Contact us at 800-283-7107 or 417-682-5551. Talk to a Real live knowledgeable  English speaking person on the first call
  • Email: info@hayspear.com
  • Fax: 417-682-3987
  • Located at 172 NE 1st Ln. Lamar, Mo. 64759

Thank you,

Alan, Joanne and Crew

Reviews

(1 review) Write a Review

1 Review Hide Reviews Show Reviews

  • 3
    Hay spear needs to lift higher

    Posted by John W Unruh on Oct 14th 2017

    Would like the forks lift higher..to the vertical position or just a little past vertical. That would put more of the bale weight on the pickup. I I am going to have my welder change it. Other than that it is very well built and should be an excellent product
