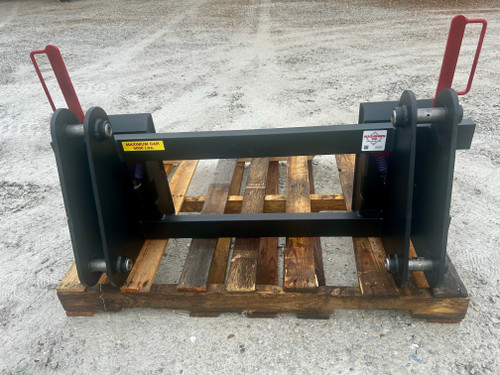

PIN ON CASE 580K TO SKIDSTEER

• For 580K CASE conversion to skid steer quick attach.
• 1 1/2 x 3" solid cross bars
• This 2 crossbar design keeps the face of thee latch boxes in line and keeps them from twisting and going out of alignment.
• Latch box sides are 3/8" thick and are made from grade 50 plate for added strength.
• The latching pins are designed so that when the latches are closed the springs are bottomed out so that the pins cannot come unlatched.
• 40 mm, pin size with grease zerk.
• Snap rings on end of pins.
• 5000# capacity
• There are variations in this model so check with us to assure that it will fit your specific loader.

• Contact us for any custom fabrications or specifications.
• Every adapter may be different or custom, call with any questions or alterations.
• Because every adapter may be different, each customer is required to fill out a schematic drawing to meet specifications.
• The schematic drawing is to ensure that you get the right adapter and that we build it to your standards.
• Each schematic will be approved by customer prior to shipping out.
• Once the schematic is approved by the customer, and built to those specifications we are no longer required to take back the adapter for any reason.
• It is very important that you take time to fill out the schematic or provide us with accurate specs for your happiness and ours.
• ALL adapters are custom built and will require a 2-3 week lead time.
• SOME more popular items are in stock and will ship out ASAP.
• If you are not sure give us a call to get a real shipping estimate.

 _____________________________________________________________________________________________________________________

• FULL DISCLAIMER: FACTORY WARRANTY IS NULL AND VOID WHEN OUR PRODUCT IS MODIFIED, OR IF THE PRODUCT HAS BEEN SUBJECT TO MISUSE, NEGLECT OR ACCIDENT.
• There are a wide variety of companies that produce “front end loaders,” which means there is also a wide variety of designs.
• The angle of the plate varies from 0 to 30 degrees from vertical.
• Washburn’s has concluded that using a back plate of 10 degrees would be the best angle suited for MOST loader-adapter combinations.
• BASED OFF OF THIS INFORMATION; PLEASE check your loader to make sure your attachments will hook up properly and have sufficient range of motion.
