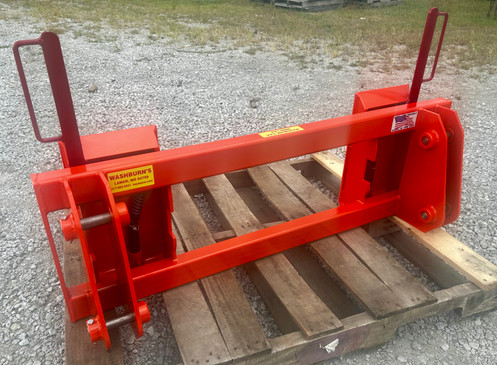

PIN ON KUBOTA LB552 TO SKIDSTEER

Converts a Pin On Kubota LB552 to use standardized skidsteer equipment
Heavy duty construction throughout.
Solid 3" x 1 1/2" rectangular cross bars.
Comes with (4) new 1" x 5 1/8" Pins
Bushings are made out of 2" OD x 1" ID DOM
Kubota LB 552 bracket pin hole spacing is 9 1/2"
Inner Brackets are spaced at 39" outside.
Two crossbar design keeps the face of thee latch boxes in line and keeps them from twisting and going out of alignment.
Latch box sides are 3/8" thick and are made from grade 50 plate for added strength.

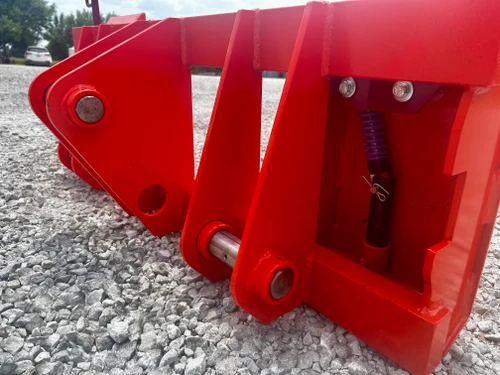

The latching pins are designed so that when the latches are closed the springs are bottomed out so that the pins cannot come unlatched.
Grease Zerk in both latching pin(please grease prior to use)
Couples the two different Quick hitches as close as is physically possible for maintaining maximum lifting capacity.
Comes powder coated Kubota Orange.
ALL adapters are custom built and will require a 2-3 week lead time.
SOME more popular items are in stock and will ship out ASAP.

___________________________________________________________

FULL DISCLAIMER: FACTORY WARRANTY IS NULL AND VOID WHEN OUR PRODUCT IS MODIFIED, OR IF THE PRODUCT HAS BEEN SUBJECT TO MISUSE, NEGLECT OR ACCIDENT.
There are a wide variety of companies that produce “front end loaders,” which means there is also a wide variety of designs.
The angle of the plate varies from 0 to 30 degrees from vertical.
Washburn’s has concluded that using a back plate of 10 degrees would be the best angle suited for MOST loader-adapter combinations.
BASED OFF OF THIS INFORMATION; PLEASE check your loader to make sure your attachments will hook up properly and have sufficient range of motion.
Note if your adapter has bump stops. Revision may be needed.

SHIPPING

Live freight quotes available at checkout!
Product is over 150# and will ship LTL truck freight
Ships by truck to many locations, for the best freight quote, ship to a business location with posted hours, forklift, & loading dock.
If FedEx has to unload the skid, a $75+ fee will be passed to the customer directly.
Residential deliveries are $55+ higher.
